| Coad | 670563 | Material | 6061-T6 Aluminum Alloy | |
| Type | Standard O-Type Optical Mount (Industrial Grade) | Adjuster Specification | M6 x 3 | |
| Optical Component Diameter (mm) | 30.00 | Optical Component Thickness | 3.0mm（MIN） | |
| Pitch/Yaw Adjustment Range (°) | ±4 | Pitch/Yaw Adjustment Accuracy | 0.4°/turn | |
| Optical Axis Center Height (mm) | 25.40 | Mounting Hole Specifications | M4 Countersunk Mounting Hole x 2 | |
| Optical Component Mounting Method | Secured with Set Screw and Elastic Retaining Ring Dual Clamping | Optical Element Thickness for Dual Clamping | 6.5mm | |
| Locking Method | Axial Locking with Locknut | Number of Tension Springs | - | |
| Surface Treatment | Black Anodized | Weight | - | |
| Included Wrench | 2.0mm x 1 | Included Screws | 2 |

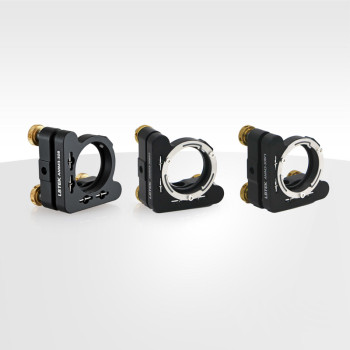

LBTEK Industrial-Grade Standard O-Type Optical Mount adopts a four-spring design to enhance structural stability and improve vibration resistance. The mount is equipped with two or three M6×0.25 precision adjusters, allowing ±4° pitch and yaw adjustment. Each adjuster is fitted with an anti-loosening locknut to provide axial locking for long-term stability. The base includes two M4 countersunk holes for secure installation.
LBTEK Standard 3-Axis O-Type Optical Mount is designed for Ø30.0 mm optical elements, with an optical axis height of 25.4 mm. The base is equipped with countersunk holes for M4 screws, allowing secure connection to optical posts. Model AMM3-30B secures Ø30.0 mm optical elements with a minimum thickness of 3.0 mm using set screws. Models AMM3-30BP1 and AMM3-30BP2 employ dual clamping with set screws and elastic retaining rings: the set screws secure optics with a minimum thickness of 3.0 mm, while the retaining rings clamp optics with thicknesses of 6.5 mm and 5.0 mm, respectively. The mount features three M6×0.25 precision adjusters, each lockable with a locknut, providing ±4° pitch and yaw adjustment at 0.4° per turn. The adjusters are knobless and can be adjusted using either a 2.0 mm hex wrench or the knob-handled hex wrench HWS-2. Each purchase of the LBTEK Standard O-Type Optical Mount includes one 2.0 mm hex wrench and two M4 socket head cap screws.
