| Coad | 670544 | Material | 6061-T6 Aluminum Alloy | |
| Type | 45-Degree Mounting Optical Mount | Adjuster Specification | M5 x 3 | |
| Optical Component Diameter (mm) | 25.40 | Optical Component Thickness | - | |
| Pitch/Yaw Adjustment Range (°) | ±3.4 | Surface Treatment | Black Anodized | |
| Pitch/Yaw Adjustment Accuracy（mm/turn） | 0.25 | Accessories Included | 2.0mm Hex Wrench x 1 + 2.5mm Hex Wrench x 1 | |
| Optical Component Mounting Method | Secured with Set Screw | Cage Rod Mounting Method | Through-Hole |
LBTEK offers both fixed and adjustable 45-degree mounts, enabling 90-degree beam deflection. The 45° fixed mounts are available in three standard sizes: Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm. In addition, mounts for elliptical optics (long axis 35.9 mm, short axis 25.4 mm) and off-axis parabolic mirrors are also available. The fixed mounts are compatible with standard O-type mirror mounts, while the cage system 45-degree mounting mounts are compatible with 30 mm and 60 mm cage systems.

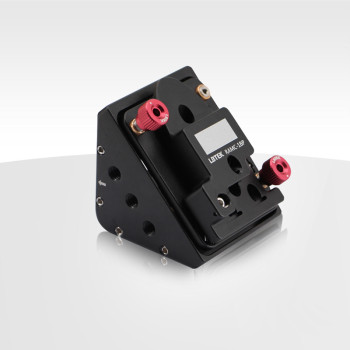

LBTEK Cage System Right-Angle Mirror Mount RAMC-1BP is designed for off-axis parabolic (OAP) mirrors, compatible with 30 mm cage systems, and well-suited for building compact optical setups. Both the input and output faces feature an SM1-threaded hole, supporting Ø25.4 mm lens tubes. The OAP mirror is installed onto a quick-release mounting plate using the supplied screw-and-dowel kit. A steel-ball and dual-line positioning structure ensures quick removal with high repeatability. Once positioned, the mirror is locked in place with non-removable M3 screws. Equipped with three adjusters, the mount provides ±3.4° pitch and yaw adjustment as well as ±2.5 mm linear translation. The input and output faces are mutually perpendicular.
