| Coad | 670543 | Material | 6061-T6 Aluminum Alloy | |
| Type | 45-Degree Mounting Optical Mount | Adjuster Specification | M5 x 3 | |
| Optical Component Diameter (mm) | - | Optical Component Thickness | 6.0mm（MIN） | |
| Pitch/Yaw Adjustment Range (°) | ±4 | Surface Treatment | Black Anodized | |
| Pitch/Yaw Adjustment Accuracy（mm/turn） | 0.25 | Accessories Included | 1.5mm Hex Wrench x 1 + 2.0mm Hex Wrench x 1 | |
| Optical Component Mounting Method | Secured with Set Screw and Spring Plate | Cage Rod Mounting Method | Through-Hole |
LBTEK offers both fixed and adjustable 45-degree mounts, enabling 90-degree beam deflection. The 45° fixed mounts are available in three standard sizes: Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm. In addition, mounts for elliptical optics (long axis 35.9 mm, short axis 25.4 mm) and off-axis parabolic mirrors are also available. The fixed mounts are compatible with standard O-type mirror mounts, while the cage system 45-degree mounting mounts are compatible with 30 mm and 60 mm cage systems.

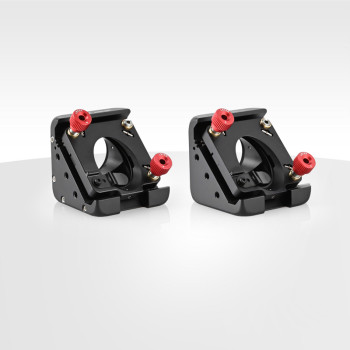

LBTEK Cage System Right-Angle Mirror Mount is designed for mounting elliptical mirrors at 45°, compatible with 30 mm cage systems, and ideal for building compact optical setups. Both the input and output faces feature an SM1-threaded hole, supporting Ø25.4 mm lens tubes. The slanted surface accommodates elliptical optical elements with dimensions of 35.9 mm (major axis) × 25.4 mm (minor axis) × 6 mm (thickness). The optical element is secured using a set screw and spring clip (screw depth should be adjusted according to the element thickness). Equipped with three adjusters, the mount allows ±4° pitch and tilt adjustment as well as ±2.5 mm linear translation. The input and output faces are mutually perpendicular and can connect to Ø6 mm cage rods. Two mounting options are available: through-hole or threaded-hole versions.
