| Coad | 670537 | Material | 6061-T6 Aluminum Alloy | |
| Type | 45-Degree Mounting Optical Mount | Adjuster Specification | - | |
| Optical Component Diameter (mm) | 25.40 | Optical Component Thickness | 5.0mm（MAX） | |
| Pitch/Yaw Adjustment Range (°) | - | Surface Treatment | Black Anodized | |
| Pitch/Yaw Adjustment Accuracy（mm/turn） | - | Accessories Included | - | |
| Optical Component Mounting Method | SM1R Retaining Ring | Cage Rod Mounting Method | - |
LBTEK offers both fixed and adjustable 45-degree mounts, enabling 90-degree beam deflection. The 45° fixed mounts are available in three standard sizes: Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm. In addition, mounts for elliptical optics (long axis 35.9 mm, short axis 25.4 mm) and off-axis parabolic mirrors are also available. The fixed mounts are compatible with standard O-type mirror mounts, while the cage system 45-degree mounting mounts are compatible with 30 mm and 60 mm cage systems.

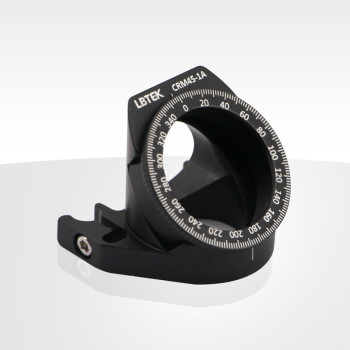

LBTEK Cage System Right-Angle Rotation Mount CRM45-1A is designed for 30 mm cage systems, featuring flexure locking for quick-release installation. The embedded mount CRM45-1AS is secured with set screws, allowing quick release and is sold separately.
Note: Before installing the mount into the cage system, the embedded mount must be removed. After the rotation mount is secured onto the cage rods, the embedded mount should then be fixed into the holder for final locking.
