| Coad | 670533 | Material | 6061-T6 Aluminum Alloy | |
| Type | Edgeless Optical Adjustment Mount | Mounting Hole Specifications | M4 Countersunk Hole x 6 | |
| Optical Component Diameter (mm) | 50.80 | Optical Component Thickness | 9.0 - 13.0mm | |
| Optical Axis Center Height (mm) | 39.00 | Adjuster Specification | - | |
| Pitch/Yaw Adjustment Range (°) | ±4 | Maximum Linear Translation in Z Direction | 6.5mm | |
| Pitch/Yaw Adjustment Accuracy（°/turn） | 0.23 | Thread Locking Method | Radial locking | |
| Surface Treatment | Black Anodized | Included Wrench | 1.5mm x 1 + 2.0mm x 1 | |
| Included Screws | 2 | |||

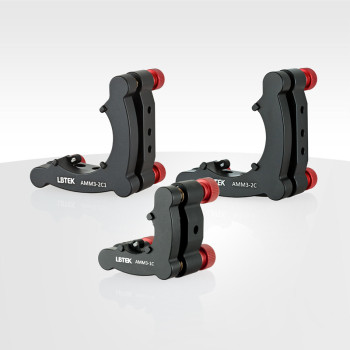

The LBTEK edgeless optical adjustment mount is designed for holding optical elements with diameters of 12.7 mm, 25.4 mm, and 50.8 mm, and can be installed in either left- or right-handed configurations. Optical elements are secured using nylon-tipped setscrews. The AMM3 series provides an angular adjustment range of ±4°, with a thicker back plate compared to LBTEK’s standard two-axis mounts, offering greater stability. It is equipped with three precision screw adjusters, with threaded bushings featuring a clamp-lock design; the locking screw can be tightened with a 2.0 mm hex key. The ACMM series provides an angular adjustment range of ±5° and allows quick replacement of adjusters to accommodate various adjustment screws, micrometers, and motorized actuators.
The LBTEK edgeless optical adjustment mount is designed for holding optical elements with diameters of 25.4 mm and 50.8 mm. The elements are secured by two nylon-tipped setscrews located on the back of the mount. Each edgeless mount includes one M4 countersunk mounting hole on either the side or the bottom. With the purchase of the LBTEK 1-inch and 2-inch edgeless optical adjustment mounts, two M4 socket head cap screws, along with one 1.5 mm hex key and one 2.0 mm hex key, are supplied.
