| Coad | 670511 | Material | 6061-T6 Aluminum Alloy | |
| Type | Six-Axis Optical Mount | Countersunk Hole Specification | M4 x 6 | |
| Optical Component Diameter (mm) | 25.40 | Optical Component Thickness | 15.8mm（MAX） | |
| Pitch/Yaw Adjustment Range (°) | ±4 | Pitch/Yaw Adjustment Accuracy | 0.23° / turn | |
| Optical Axis Center Height (mm) | 39.00 | X- and Y-Axis Travel Range | ±2mm | |
| Optical Component Mounting Method | Single Retaining Ring Mounting | X- and Y-Axis Travel Accuracy | 0.25mm / turn | |
| Rotation Indexing | 2° | Z-Axis Travel Range | ±3.25mm | |
| Rotation Angle | 360° | Z-Axis Travel Accuracy | 0.25mm / turn | |
| Thread Locking Method | Axial Locking | With Locking Nut (Yes/No) | YES | |
| Surface Treatment | Black Anodized | Included Retaining Ring | SM1R x 1 | |
| Included Wrench | 2.0mm x 1 + 1.5mm x 1 | |||
The LBTEK six-axis optical adjustment mount allows translation along three axes, pitch/yaw adjustment, and 360° rotation. Each adjustment axis can be locked to enhance mount stability. The mounting port features an SM1-threaded aperture for installing optical elements or SM1-threaded components. The AMM6-1A mount includes four M3 threaded holes on its rotation ring for attaching the AMM6P prism mounting accessory. This prism accessory provides a 42.0 mm × 12.7 mm platform. The rear plate of the mount is equipped with six M4 countersunk holes, allowing posts to be mounted on the AMM6-1A for either left- or right-handed operation.

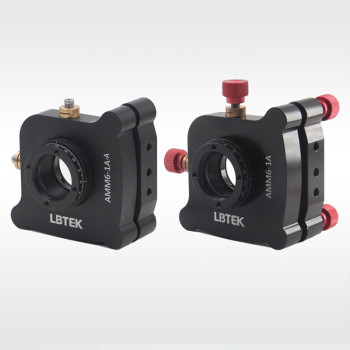

The LBTEK six-axis optical adjustment mount features an SM1 internal-threaded port and comes with one SM1R retaining ring, allowing the installation of Ø25.4 mm optical elements up to 15.8 mm thick. It provides adjustment along six axes (XYZ translation, pitch, yaw, and 360° rotation), with all axes lockable. The AMM6-1A and AMM6-1A-A models differ in that the AMM6-1A-A version is supplied without thread caps. Both versions are equipped with three M6×0.25 and two M5×0.25 precision adjustment screws, with threaded bushings that include a locking mechanism. The 360° rotation axis also features a lock. Locking screws can be tightened using 2.0 mm and 1.5 mm hex keys. Each LBTEK six-axis optical adjustment mount is supplied with one 2.0 mm hex key, one 1.5 mm hex key, and two M4 socket head cap screws.
