| Coad | 670508 | Material | 6061-T6 Aluminum Alloy | |

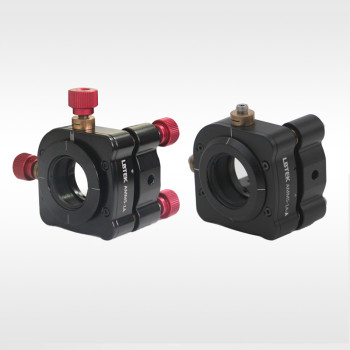

| Type | Five-Axis Optical Mount | Countersunk Hole Specification | M4 x 2 | |
| Optical Component Diameter (mm) | 25.40 | Optical Component Thickness | 10.0mm（MAX） | |
| Pitch/Yaw Adjustment Range (°) | ±4 | Pitch/Yaw Adjustment Accuracy | 0.4° / turn | |
| Optical Axis Center Height (mm) | 25.90 | X- and Y-Axis Travel Range | ±1mm | |
| Optical Component Mounting Method | Single Retaining Ring Mounting | X- and Y-Axis Travel Accuracy | 0.25mm / turn | |
| Thread hole specification | - | Z-Axis Travel Range | ±3.25mm | |
| Thread Locking Method | Radial / Axial Locking | Z-Axis Travel Accuracy | 0.25mm / turn | |
| Compatible with Coaxial System (Yes/No) | - | With Locking Nut (Yes/No) | NO | |
| Surface Treatment | Black Anodized | Included Retaining Ring | SM1R x 1 | |
| Included Wrench | 2.0mm x 1 + 1.5mm x 1 | |||
Traders City price 221.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
