| Coad | 670507 | Material | 6061-T6 Aluminum Alloy | |
| Type | Five-Axis Optical Mount | Countersunk Hole Specification | M4 x 2 | |
| Optical Component Diameter (mm) | 25.40 | Optical Component Thickness | 10.0mm（MAX） | |
| Pitch/Yaw Adjustment Range (°) | ±4 | Pitch/Yaw Adjustment Accuracy | 0.4° / turn | |
| Optical Axis Center Height (mm) | 25.90 | X- and Y-Axis Travel Range | ±1mm | |
| Optical Component Mounting Method | Single Retaining Ring Mounting | X- and Y-Axis Travel Accuracy | 0.25mm / turn | |
| Thread hole specification | - | Z-Axis Travel Range | ±3.25mm | |
| Thread Locking Method | Radial / Axial Locking | Z-Axis Travel Accuracy | 0.25mm / turn | |
| Compatible with Coaxial System (Yes/No) | - | With Locking Nut (Yes/No) | YES | |
| Surface Treatment | Black Anodized | Included Retaining Ring | SM1R x 1 | |
| Included Wrench | 2.0mm x 1 + 1.5mm x 1 | |||
LBTEK five-axis optical adjustment mount with retaining-ring fixation allows adjustment along five axes (pitch, yaw, and XYZ translation). All five axes are lockable to ensure stability. The mount features graduated scales in both horizontal and vertical directions to assist with precise centering of the mounting slot. The back plate includes two orthogonal M4 mounting holes, enabling installation on posts for either left- or right-handed operation. It is available in versions compatible with both free-space and coaxial systems.

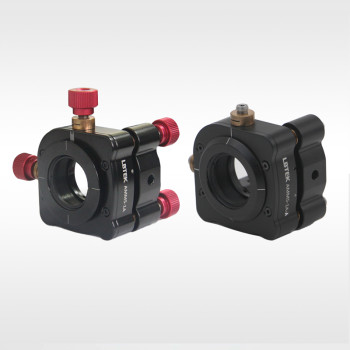

LBTEK five-axis optical adjustment mount features an SM1 internal-threaded port and comes with one SM1R retaining ring, allowing the installation of Ø25.4 mm optical elements with a maximum thickness of 10 mm. It provides adjustment along five axes (pitch, yaw, and XYZ translation), with all axes lockable. The AMM5-1A and AMM5-1A-A models differ in that the AMM5-1A-A version is supplied without thread caps. Both versions are equipped with three M6×0.25 and two M5×0.25 precision adjustment screws, with threaded bushings that include a locking mechanism. The locking screws can be tightened using 2.0 mm and 1.5 mm hex keys. The rear plate includes two orthogonal M4 countersunk holes, allowing posts to be mounted on the AMM5-1A for either left- or right-handed operation. Each LBTEK five-axis optical adjustment mount is supplied with one 2.0 mm hex key, one 1.5 mm hex key, and two M4 socket head cap screws.
