| Coad | 670500 | Material | 316L Stainless Steel | |
| Type | Fixed Optical Component Mount | Countersunk Hole Specification | M4 x 1 ，M2.5 x 3 | |
| Optical Component Diameter (mm) | 25.40 | Optical Component Thickness | 1.5mm（MIN） | |
| Optical Component Mounting Method | Flexure Clamp Mounting | Surface Treatment | Sandblasting | |
| Clear Aperture（mm） | 22.40 | Included Wrench | 1.5mm x 1 | |
| Optical Axis Center Height (mm) | 25.40 | Included Screws | 2 × M2×3 Socket Head Cap Screws |

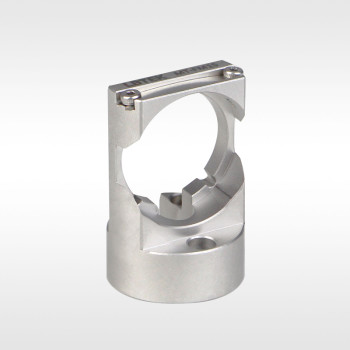

LBTEK Fixed Optical Component Mount is designed for optical setups where angular adjustment of the component is not required. It accommodates Ø12.7 mm or Ø25.4 mm optical components, which are secured with flexure plates and fixing screws. The mount is made of heat-treated 316L stainless steel with a low thermal expansion coefficient, ensuring long-term stability. The base includes an M4 threaded mounting hole, allowing connection to Ø12.7 mm or Ø25 mm stainless steel optical posts.
LBTEK Stainless Steel Fixed Mount is designed for Ø25.4 mm optical components. The optics are secured with flexure plates and fixing screws, which effectively distribute the clamping force and provide a stable mounting method under low-stress conditions. The mount supports optical components with a minimum thickness of 1.5 mm and features a clear aperture of 22.4 mm. The base of the mount includes one M4 threaded hole and three M2.5 threaded holes, allowing connection to Ø12.7 mm or Ø25 mm optical posts.
