| Coad | 670499 | Material | 316L Stainless Steel | |
| Type | 2-inch Stainless Steel Optical Mount | Pitch/Yaw Angle | ±4° | |
| Optical Component Diameter (mm) | 50.80 | Optical Component Thickness | 4.0mm（MIN） | |
| Optical Component Mounting Method | Flexure Plate | Adjustment Accuracy | 0.27° / turn | |
| Adjuster Specification | 2 × M6×0.25 Knobless Precision Adjustment Screws with Locking Rings | Countersunk Hole Specification | M4 x 2 | |
| Optical Axis Center Height (mm) | 35.60 | Maximum Linear Translation in Z Direction | - | |
| Locking Nut Compatible (Yes/No) | - | Thread Locking Method | - | |
| Surface Treatment | Sandblasting | Included Wrench | 2.0mm x 1 , 2.5mm x 1 | |
| Included Screws | 2 × M4×14 Hex Socket Screws | |||
LBTEK 2-inch MT High-Stability Series Optical Mount offers superior long-term alignment stability compared to standard optical mounts and is designed for holding Ø50.8 mm optical components. It supports both left- and right-handed installation. Optical components can be secured either by flexure plates with fixing screws or by retaining rings.
Equipped with M6×0.25 precision adjusters, the mount provides an angular adjustment range of ±4°. For adjustment of MT series stainless steel optical mounts, LBTEK also offers a range of compatible accessories that can be optionally selected by users, providing greater convenience and flexibility in operation and allowing the mounts to meet a wider variety of application scenarios.

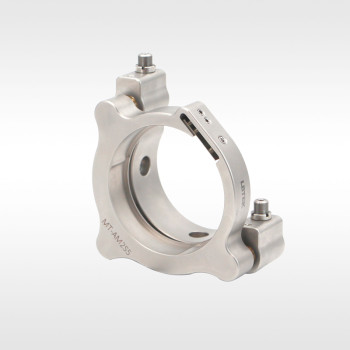

LBTEK 2-inch Stainless Steel Mirror Mount is designed for holding Ø50.8 mm optical components and is equipped with two vertical-drive, knobless M6×0.25 precision adjusters with locking rings. This configuration is intended for situations where there is no space behind the mount to use horizontal adjusters. The optics are secured using flexure plates and fixing screws. The two knobless adjusters with locking rings provide an angular adjustment range of ±4° for pitch and yaw, and are operated using a hex wrench. The mount body includes M4 countersunk mounting holes. Each purchase includes two M4 low-profile hex socket screws, one 2.0 mm hex key, and one 2.5 mm hex key.
