| Coad | 670490 | Material | 316L Stainless Steel | |

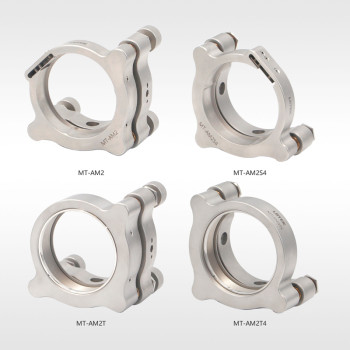

| Type | 2-inch Stainless Steel Optical Mount | Pitch/Yaw Angle | ±4° | |
| Optical Component Diameter (mm) | 50.80 | Optical Component Thickness | 12.0mm（MAX） | |
| Optical Component Mounting Method | Retaining Ring | Adjustment Accuracy | 0.27° / turn | |
| Adjuster Specification | 3 × Knobless M6×0.25 Precision Adjustment Screws | Countersunk Hole Specification | M4 x 2 | |
| Optical Axis Center Height (mm) | 35.60 | Maximum Linear Translation in Z Direction | 6.0mm | |
| Locking Nut Compatible (Yes/No) | - | Thread Locking Method | Locking Nut | |
| Surface Treatment | Sandblasting | Included Wrench | 2.0mm x 1 , 2.5mm x 1 | |
| Included Screws | 2 × M4×14 Hex Socket Screws | |||
Traders City price 286.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
