| Coad | 670488 | Material | 316L Stainless Steel | |
| Type | 2-inch Stainless Steel Optical Mount | Pitch/Yaw Angle | ±7° | |
| Optical Component Diameter (mm) | 50.80 | Optical Component Thickness | 7.0mm（MIN） | |
| Optical Component Mounting Method | Flexure Clamp Mounting | Adjustment Accuracy | 0.37° / turn | |
| Adjuster Specification | 2 × M6×0.25 Precision Adjustment Screws | Countersunk Hole Specification | M4 x 2 | |
| Optical Axis Center Height (mm) | 38.10 | Maximum Linear Translation in Z Direction | - | |
| Locking Nut Compatible (Yes/No) | - | Thread Locking Method | - | |
| Surface Treatment | Sandblasting | Included Wrench | 2.0mm x 1 , 3.0mm x 1 | |
| Included Screws | 2 × M4×12 Cylinder Head Screws | |||
LBTEK 2-inch MT High-Stability Series Optical Mount offers superior long-term alignment stability compared to standard optical mounts and is designed for holding Ø50.8 mm optical components. It supports both left- and right-handed installation. Optical components can be secured either by flexure plates with fixing screws or by retaining rings.
Equipped with M6×0.25 precision adjusters, the mount provides an angular adjustment range of ±4°. For adjustment of MT series stainless steel optical mounts, LBTEK also offers a range of compatible accessories that can be optionally selected by users, providing greater convenience and flexibility in operation and allowing the mounts to meet a wider variety of application scenarios.

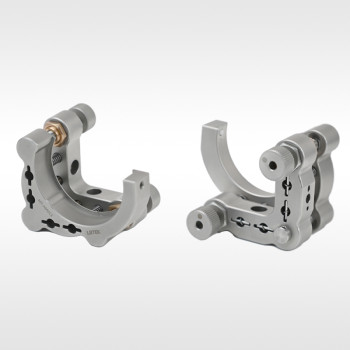

LBTEK 2-inch Edgeless Stainless Steel Mirror Mount features an open-edged design that allows a beam to be reflected from one mount to another at a small incident angle θ. Optical components are secured with nylon-tipped set screws and can be mounted with a diameter of Ø50.8 mm and a minimum thickness of 7 mm. The mount is equipped with M6×0.25 precision adjusters for pitch and yaw adjustment, offering a ±7° range. Each adjuster includes either a knurled locking nut or a standard locking nut for secure fixation. The mount body also has M4 countersunk mounting holes. Each purchase includes two M4×12 socket head cap screws and one 2.0 mm hex key.
