| Coad | 670484 | Material | 316L Stainless Steel | |
| Type | 1-inch Stainless Steel Optical Mount | Pitch/Yaw Angle | ±4° | |
| Optical Component Diameter (mm) | 25.40 | Optical Component Thickness | 2.0mm（MIN） | |
| Optical Component Mounting Method | Flexure Plate and Set Screw | Adjustment Accuracy | 0.4° / turn | |
| Adjuster Specification | 2 × M6×0.25 Precision Adjustment Screws with Knurled Knobs | Countersunk Hole Specification | M4 x 2 | |
| Optical Axis Center Height (mm) | 25.40 | Maximum Linear Translation in Z Direction | - | |
| Locking Nut Compatible (Yes/No) | - | Thread Locking Method | - | |
| Surface Treatment | Sandblasting | Included Wrench | 2.0mm x 1 | |
| Included Screws | 2 × M4×14 Hex Socket Ultra-Thin Head Screws | |||

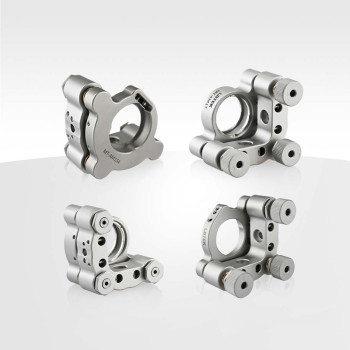

LBTEK 1-inch MT High-Stability Series Optical Mount offers superior long-term alignment stability compared to standard optical mounts and is designed for holding Ø25.4 mm optical components. It supports both left- and right-handed installation. Optical components can be secured either by flexure plates with fixing screws or by retaining rings.
Equipped with M6×0.25 precision adjusters, the mount provides an angular adjustment range of ±4° or ±7°. For adjustment of MT series stainless steel optical mounts, LBTEK also offers a range of compatible accessories that can be optionally selected by users, providing greater convenience and flexibility in operation and enabling the mounts to meet a wider variety of application scenarios.
LBTEK 1-inch Stainless Steel Mirror Mount is designed for holding Ø25.4 mm optical components. Two low-deformation mounting methods are available: the MT-AM1Sx series, which secures optics with flexure plates and fixing screws (minimum optic thickness: 2 mm); and the MT-AM1Tx series, which secures optics directly with retaining rings (two stainless steel rings included), supporting optics up to 8 mm in thickness. The mount is equipped with two M6×0.25 precision adjusters, providing an angular adjustment range of ±4°. Both knobbed and knobless versions are available: the knobbed version can be adjusted by hand or with a hex wrench, while the knobless version requires a hex wrench. The mount body includes M4 countersunk mounting holes. Each purchase includes two M4 low-profile hex socket screws and one 2.0 mm hex key.
