| Coad | 670474 | Material | 316L Stainless Steel | |
| Type | 0.5-inch Stainless Steel Optical Mount | Pitch/Yaw Angle | ±4° | |
| Optical Component Diameter (mm) | 12.70 | Optical Component Thickness | 2.0mm（MIN） | |
| Optical Component Mounting Method | Flexure Plate and Set Screw | Adjustment Accuracy | 0.65° / turn | |
| Adjuster Specification | 2 × M4×0.20 Knobless Precision Adjustment Screws with Locking Rings | Countersunk Hole Specification | M4 x 2 | |
| Optical Axis Center Height (mm) | 12.70 | Maximum Linear Translation in Z Direction | - | |
| Locking Nut Compatible (Yes/No) | - | Thread Locking Method | - | |
| Surface Treatment | Sandblasting | Included Wrench | 2.0mm Hex Key x 1 and 1.5mm Hex Key x 1 | |
| Included Screws | 2 × M4×10 Hex Socket Ultra-Thin Head Screws | |||
LBTEK 0.5-inch MT High-Stability Series Optical Mount is designed for holding Ø12.7 mm optical components. It supports both left- and right-handed installation and provides superior long-term alignment stability compared to standard optical mounts. Optical components can be secured using flexure plates with fixing screws or alternatively with retaining rings. Equipped with M4×0.2 precision adjusters, the mount offers an angular adjustment range of ±4° or ±5°.

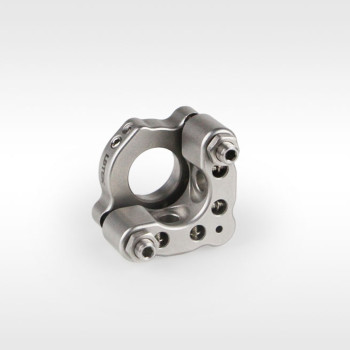

LBTEK 0.5-inch Stainless Steel Mirror Mount is designed for holding Ø12.7 mm optical components and is equipped with two vertical-drive M4×0.20 precision adjusters with locking rings. This design is intended for situations where there is no space behind the mount to use horizontal adjusters. The optics are secured by flexure plates with fixing screws. The two knobless M4×0.20 precision adjusters with locking rings provide an angular adjustment range of ±4°. Adjustments are made via a hex wrench. The mount body is equipped with M4 countersunk mounting holes. Each mount is supplied with two M4 low-profile hex socket screws and one 2.0 mm and one 1.5 mm hex key.
