| Coad | 670470 | Material | 316L Stainless Steel | |
| Type | 0.5-inch Stainless Steel Optical Mount | Pitch/Yaw Angle | ±5° | |
| Optical Component Diameter (mm) | 12.70 | Optical Component Thickness | 6.6mm（MAX） | |
| Optical Component Mounting Method | Retaining Ring Mounting for Optical Components | Adjustment Accuracy | 0.65° / turn | |
| Adjuster Specification | 3 × Knobless M4×0.2 Precision Adjustment Screws | Countersunk Hole Specification | M4 x 2 | |
| Optical Axis Center Height (mm) | 12.70 | Maximum Linear Translation in Z Direction | 3.5mm | |
| Locking Nut Compatible (Yes/No) | - | Thread Locking Method | - | |
| Surface Treatment | Sandblasting | Included Wrench | 2.0mm Hex Key x 1 | |
| Included Screws | 2 × M4×10 Hex Socket Ultra-Thin Head Screws | |||
LBTEK 0.5-inch MT High-Stability Series Optical Mount is designed for holding Ø12.7 mm optical components. It supports both left- and right-handed installation and provides superior long-term alignment stability compared to standard optical mounts. Optical components can be secured using flexure plates with fixing screws or alternatively with retaining rings. Equipped with M4×0.2 precision adjusters, the mount offers an angular adjustment range of ±4° or ±5°.

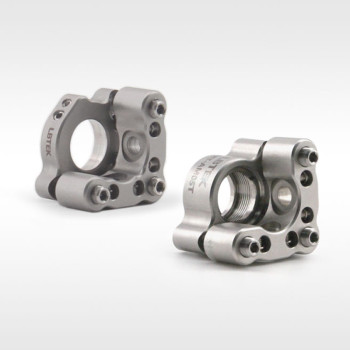

LBTEK 0.5-inch Stainless Steel Mirror Mount is designed for holding Ø12.7 mm optical components and is equipped with three knobless M4×0.2 precision adjusters. Two low-deformation optical component mounting methods are available: MT-AM05, which secures optics using flexure plates and fixing screws (minimum component thickness: 2 mm), and MT-AM05T, which uses retaining rings (two stainless steel rings included) to directly fix the optics, with a maximum allowable thickness of 6.6 mm. The three knobless M4×0.2 precision adjusters allow pitch and yaw adjustments of the optical element via a hex wrench. The mount body includes M4 countersunk mounting holes. Each LBTEK stainless steel mirror mount is supplied with ultra-thin hex socket screws and a matching hex wrench.
