| Coad | 670469 | Material | 316L Stainless Steel | |

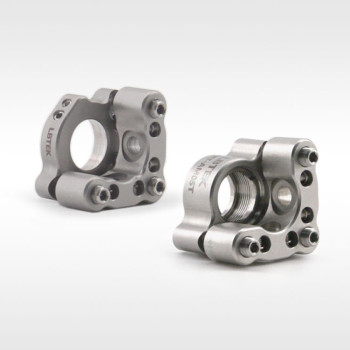

| Type | 0.5-inch Stainless Steel Optical Mount | Pitch/Yaw Angle | ±5° | |
| Optical Component Diameter (mm) | 12.70 | Optical Component Thickness | 2.0mm（MIN） | |
| Optical Component Mounting Method | Flexure Clamp Mounting | Adjustment Accuracy | 0.65° / turn | |
| Adjuster Specification | 3 × Knobless M4×0.2 Precision Adjustment Screws | Countersunk Hole Specification | M4 x 2 | |
| Optical Axis Center Height (mm) | 12.70 | Maximum Linear Translation in Z Direction | 3.5mm | |
| Locking Nut Compatible (Yes/No) | - | Thread Locking Method | - | |
| Surface Treatment | Sandblasting | Included Wrench | 2.0mm Hex Key x 1 and 1.5mm Hex Key x 1 | |
| Included Screws | 2 × M4×10 Hex Socket Ultra-Thin Head Screws | |||
Traders City price 100.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
