| Coad | 670437 | Substrate | Liquid Crystal Polymer / N-BK7 | |

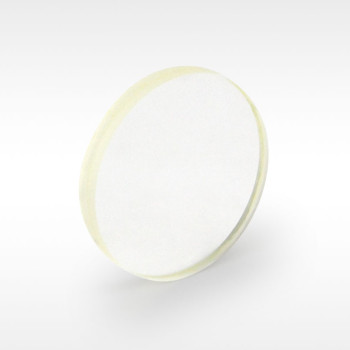

| Type | Polymer Beam-Splitting DOE | Operating Temperature | -20 - 80℃ | |
| Dimension(mm) | 25.4 x 3.2 | Clear Aperture | 21.5mm | |
| Wavelength(nm) | 1064 | Diffraction Efficiency | 91.24% | |
| Beam Split Mode | 1×3 | Beam Split Uniformity | >95% | |
| Separation Angle（°） | 1.00 | Transmittance | >98% | |
| Surface Quality | 40-20 | Transmission Wavefront Deviation | ＜λ/4@633nm | |
| Coating Type | AR Coating | Coating Specifications | Ravg＜0.5%@700-1100nm |
Traders City price 1132.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
