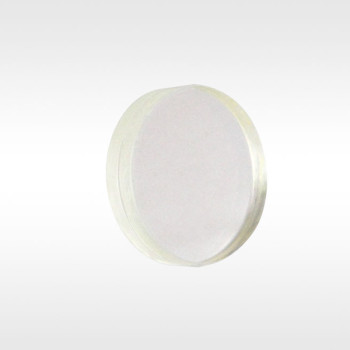

| Coad | 670402 | Substrate | Liquid Crystal Polymer / UVFS | |
| Type | Polymer Homogenizing DOE | Clear Aperture | 15.0 x 15.0mm | |
| Coating Specifications | 25.4 x 6.0,Ravg＜0.5%@532&1064nm,AOI=0° | Focal Length | 100.0mm | |
| Wavelength(nm) | 532 | Incident Beam Polarization State | Uniform Polarization State | |
| Incident Beam Diameter (mm) | 7.00 | Incident Beam Quality | M2<1.3 | |
| Incident Beam Tilt | ±5° | Incident Beam Decentering | ±0.3mm(±5% of input beam diameter) | |
| Output Beam Diameter (μm) | 75.8 x 75.8 | Output Beam Profile | Square | |
| Output Beam Uniformity | ＞90%（RMS） | Transmission Area Width | 4.10μm | |
| Diffraction Efficiency | >90% | Surface Quality | 60-40 | |
| Transmittance | >97% | Coating Type | Double-V AR Coating |
Traders City price 1697.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
