| Code | 670378 | Type | Calibration Light Sources | |
| Operating Wavelength | 253 – 1100nm | Interface Type | SMA905 | |
| Light Source | Low-pressure mercury & argon lamp | Warm-Up Time | 15min | |
| Power Consumption | 250mA @ 12V DC | Lamp Lifetime | 6000h | |
| Rated Power | 3W | Power Supply | 12V / 2A DC | |
| Dimensions (L × W × H) | 105 × 75 × 40mm | Weight | 40g |
Traders City price 403.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Operating Wavelength: 253 – 1100 nm
Output Interface: Standard SMA905 connector
Output Fiber: Optional, sold separately

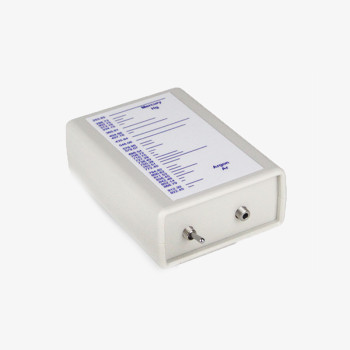

LBTEK compact mercury-argon calibration light sources are designed for wavelength calibration of UV-VIS-NIR spectrometers. Operating in the 253–1100 nm range, these lamps provide stable characteristic spectral lines. The main mercury and argon lines, along with their relative intensities, are printed on the instrument housing for convenient reference.
Equipped with a standard SMA905 output connector, the mercury-argon calibration light source can be coupled with a large-core optical fiber to achieve fast and accurate wavelength calibration of fiber optic spectrometers.
