| Code | 670377 | Type | Calibration Light Sources | |
| Operating Wavelength | 916 – 1984nm | Interface Type | SMA905 | |
| Power Consumption | 3W | Lamp Lifetime | 3000h | |
| Housing Material | Aluminum Alloy | Power Supply | 12V / 2A DC | |
| Dimensions (L × W × H) | 60 × 45 × 40mm |
Traders City price 756.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Operating Wavelength: 916 – 1984 nm
Output Interface: Standard SMA905 connector
Output Fiber: Optional, sold separately

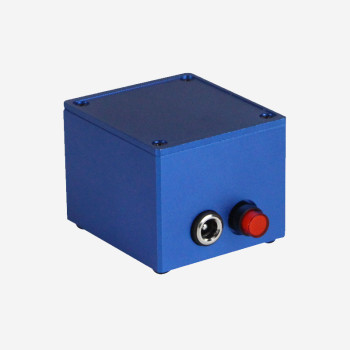

LBTEK xenon calibration light sources are designed for wavelength calibration of NIR spectrometers. They feature long lifetime, low power consumption, compact size, and broad spectral coverage. Operating in the 916–1984 nm range, the xenon lamp provides stable characteristic spectral lines.
Equipped with a standard SMA905 connector, the xenon calibration light source can be coupled with a large-core optical fiber to achieve fast and accurate wavelength calibration of fiber optic spectrometers.
