| Code | 670375 | Type | Broadband Continuous Light Sources | |
| Operating Wavelength | 360 – 2500nm | Interface Type | SMA905 | |
| Lamp Voltage | 5V | Lifetime | 10,000h | |
| Power Consumption | 5W | Color Temperature | 2800K | |
| Output Optical Power | 3.0mW @ 600μm | Stability | < 0.15% / hr | |
| Power Supply | 5V / 2A DC | Dimensions (L × W × H) | 40 × 70 × 55mm | |
| Weight | 170g | Type | Adjustable intensity |
Operating Wavelength: 360 – 2500 nm
Output Interface: SMA905 standard connector
Features: Compact size, long lifetime, adjustable intensity
Output Fiber: Optional, sold separately

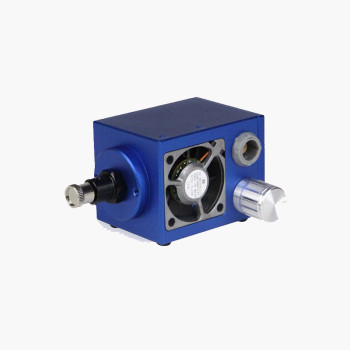

LBTEK compact halogen lamps feature a small footprint, long service life, adjustable light intensity, and a broad spectral range of 360–2500 nm. The output port uses a standard SMA905 connector, and the lamp intensity can be adjusted from 0–100% by tuning the filament current with a potentiometer. This makes it easy to integrate into a variety of measurement systems, meeting the needs of reflection and transmission spectroscopy for different samples.
For optimal spectral performance, LBTEK recommends pairing with large-core optical fibers. Powered by a 5 V supply, these compact halogen lamps are lightweight and flexible, making them ideal for routine, simple, and rapid experimental testing applications.
