| Code | 670371 | Type | Broadband Continuous Light Sources | |
| Operating Wavelength | 185 – 600nm | Interface Type | SMA905 | |
| Power | 25W | Radiation Characteristics | 0.5mm aperture, Numerical Aperture (NA) 0.22 – 0.37 | |
| Power Supply | AC 85 – 250V, 50 – 60Hz | Current | 85V / 0.3A (operating) | |
| Power Consumption | ~78 VA | Operating Temperature Range | 5 – 35℃ | |
| Humidity | 5 – 95% | Warm-Up Time | 40min | |
| Weight | 3.5kg | Dimensions (L × W × H) | 200 × 145 × 110mm | |
| Type | Fixed intensity |
Operating Wavelength: 185 – 600 nm
Output Interface: SMA905 standard connector
Output Fiber: Optional, sold separately
Application: Light source for high-precision analytical instruments

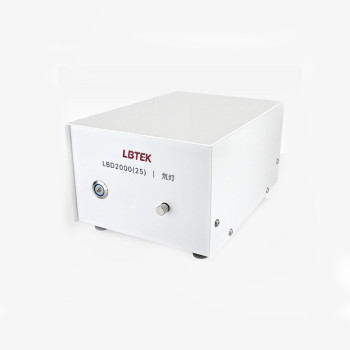

LBTEK deuterium lamps emit a continuous spectrum covering the ultraviolet region (160–400 nm) and the visible region (400–800 nm). This makes them ideal as high-precision light sources for analytical instruments such as liquid chromatography systems and spectral analyzers.
For optimal performance, deuterium lamps can be paired with the XSR600-1 UV-resistant quartz fiber. Since standard quartz fibers absorb strongly below 300 nm, a UV-pretreated quartz fiber is recommended when operating in this wavelength range to ensure maximum efficiency.
