| Coad | 670362 | Substrate | Liquid Crystal Polymer / N-BK7 | |

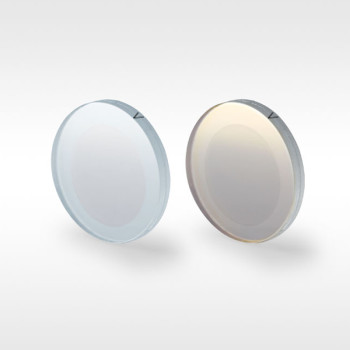

| Type | Planar Axicon Lens | Operating Temperature | -20 - 80℃ | |
| Dimension(mm) | 25.4 x 3.2 | Transmittance | ＞98% | |
| Wavelength(nm) | 633 | Center Offset | ＜0.5mm | |
| Clear Aperture（mm） | 20.00 | Equivalent Refractive Axicon Cone Angle | 10° | |
| Deflection Angle (°) | 4.7 | Transmission Light Deviation | ＜1 arcmin | |
| Optical Retardance | λ/2 | RMS | ±5nm | |
| Surface Quality | 40-20 | Zero-Order Ratio | ＜4% | |
| Transmission Wavefront Deviation | ＜λ/4@633nm | Coating Type | AR Coating | |
| Coating Specifications | Ravg＜0.5%@400-700nm | |||
Traders City price 471.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
