| Coad | 670350 | Substrate | Liquid Crystal Polymer / N-BK7 | |
| Type | Airy Beam Converter | Operating Temperature | -20 - 80℃ | |
| Dimension(mm) | 25.4 x 3.2 | Transmittance | ＞98% | |
| Wavelength(nm) | 633 | Diffraction Efficiency | ＞95% | |
| Clear Aperture（mm） | 10.0 x 10.0 | AOI | ±15° | |
| Central Offset (mm) | ＜0.5 | Transmission Light Deviation | ＜10 arcmin / ＜1 arcmin（without mechanical housing） | |
| Optical Retardance | λ/2 | RMS | ±5nm | |
| Surface Quality | 40-20 | Transmission Wavefront Deviation | ＜λ/4@633nm | |
| Coating Type | AR Coating | Coating Specifications | Ravg＜0.5%@400-700nm |

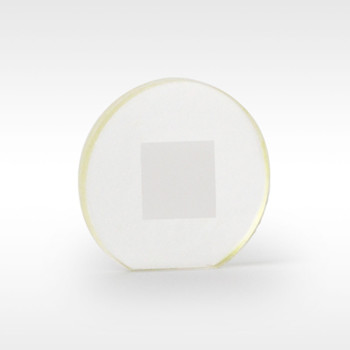

LBTEK Airy Beam Converter (AB) is a two-dimensional, first-order device fabricated from liquid crystal polymer (LCP) material and an N-BK7 window. It features a “front and rear glass substrates + central LCP functional layer” sandwich structure, supplied without housing and with a 1.5 mm cut edge on one side. Within the LCP layer, the molecules are arranged to form a cubic phase distribution, providing a uniform λ/2 retardation across the entire device plane, making it a single-wavelength component.
The Airy Beam Converter is polarization-dependent and can transform a Gaussian beam into an Airy beam with unique properties of transverse self-acceleration, self-healing, and non-diffraction. These characteristics make it highly suitable for applications in particle manipulation, material processing, microscopic imaging, and optical detection. LBTEK offers a standard Airy Beam Converter with a design wavelength of 633 nm, and also supports flexible customization of specifications and parameters.
The LBTEK two-dimensional first-order Airy Beam Converter operates at a wavelength of 633 nm and is coated with a 400–700 nm antireflection layer, ensuring transmission above 98%. It features a 1.5 mm wide cut edge on one side, aligned parallel to the edge of the clear aperture, serving as a marker for the geometric orientation of the output beam. The device has a clear aperture of 10 × 10 mm.
