| Code | 670347 | Type | Microscope Four-Color LED Light Sources | |
| Design Wavelengths | 385nm, 470nm, 510–560nm, 630nm | Optical Interface | Microscope illumination port (with SM2 internal thread) | |
| Operating Temperature Range | 5 – 35℃ | Operating Humidity | 20% – 90% RH, non-condensing | |
| Input Voltage | AC 110 – 220V | Power Consumption | 80W | |
| External Trigger | TTL trigger | SDK Support | C, C++, C# | |
| Number of Channels | 4 | Weight | 2.0kg ± 10% | |
| Operating Altitude | < 3000m | Intensity Adjustment | Touch screen or PC software control |
Typical peak wavelength outputs for fluorescence microscopy
External trigger function with both handheld and PC control
Compatible with Nikon, Zeiss, Leica, and Olympus fluorescence microscopes
Focal adjustment knob for optimal illumination uniformity
Individually adjustable power for each wavelength
LBTEK microscope four-color LED light sources provide spectral LED illumination commonly used in fluorescence microscopy, with peak wavelengths at 385 nm, 470 nm, 510–560 nm, and 630 nm. Each wavelength channel can be independently adjusted for power, allowing precise control over excitation conditions.

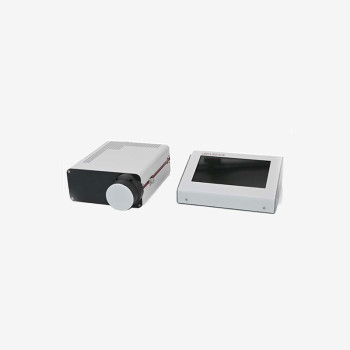

The system includes the LED light source and its touch controller, featuring a compact design, small footprint, high output power stability, and long service life. Output power is continuously adjustable, enabling reliable and long-term operation with simple control.
Additionally, the light source supports external triggering and can be operated via a handheld controller or PC software, ensuring flexible integration into microscopy workflows.
