| Code | 670308 | Type | LED Collimated Light Sources | |
| Color | White | Emitting Area | Ø20mm | |
| Color Temperature | 5000K – 8300K | Rated Voltage | 3.2V | |
| Maximum Current | 700mA | Rated Power | 1 – 3W | |
| Working Distance | 110 ± 50mm | Compatible Product | LB-LSCC-2T | |
| Dimensions | Ø32 × 88.3mm |
Emitting Area: Ø20 mm
Working Distance: 110 ± 50 mm
Features: High brightness, concentrated light, excellent collimation

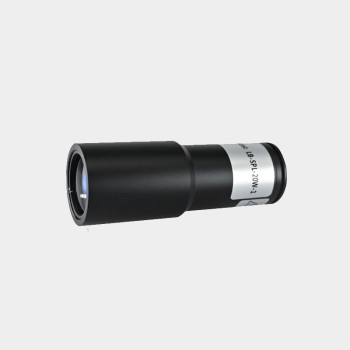

LBTEK LED collimated light sources provide an emitting area of Ø20 mm with a color temperature range of 5000 K – 8300 K and a working distance of 110 ± 50 mm. With a rated power of 1–3 W, rated voltage of 3.2 V, and maximum input current of 700 mA, these sources feature a compact structure, high stability, and long service life.
They can be powered by constant current drivers with a maximum output voltage of 5 V. The constant current design includes current limiting protection, ensuring safe operation without damaging the light source. Within the working distance, the source provides stable and uniform collimated illumination.
