| Code | 670307 | Type | Parallel Coaxial Light Sources | |
| Output Power | 20W | Channels | 4 | |
| Output Current | 1.5A (per channel) | Output Voltage | DC 5V MAX | |
| Trigger Input | 5 – 24V / 10Hz | Trigger Level | External selectable high/low level | |
| Trigger Delay | < 15μs | Input Power Supply | 110 – 246V / 50–60Hz | |
| Driving Mode | Constant voltage drive | Cooling Method | Intelligent air cooling | |
| Dimensions (L × W × H) | 152mm × 123mm × 83.5mm |
Traders City price 209.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Four-channel output
Output power: 20 W
High/low level trigger with < 15 μs delay

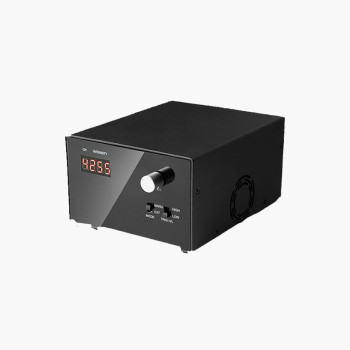

The LBTEK Parallel Coaxial Light Source Controller features four-channel output in a compact housing, making it easy to install. With an output power of 20 W, it provides constant current output and automatic current detection, supporting up to four parallel coaxial light sources simultaneously.
The controller accepts external trigger voltages from 5–24 V, with a trigger delay of less than 15 μs. It also supports external communication via RS232 or Ethernet. This controller is commonly used with cameras for applications such as surface scratch detection and contour dimension inspection of workpieces.
