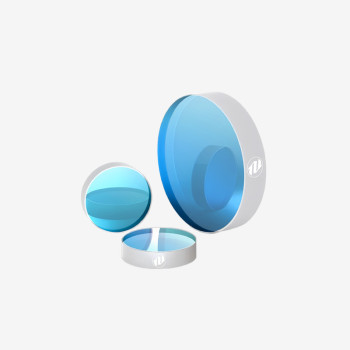

| Coad | 670305 | Type | Plate Beamsplitters – Special Section | |
| Dimension(mm) | 25.0 x 36.0 x 1.5 | Wavelength(nm) | 750 - 850 | |
| Diameter | 25.0 x 36.0mm +0/-0.1 mm | Thickness | 1.5mm +0/-0.1 mm | |
| T/R Ratio | 95:5 | AOI(°) | 45 | |
| Substrate | UVFS，HPFS 7980-0C | Clear Aperture | - | |
| Parallelism | - | Surface Quality S1 | 20-10 S-D as per MIL-PRF-13830B | |
| Surface Quality S2 | - | Surface Flatness | λ/4@633nm | |
| GDD | - | Laser Damage Threshold | - | |
| Coating Type | Dielectric Coating | Coating Specifications | S1:Rp=95%±1%@800nm，Tp=5% / S2:Uncoated |
Traders City price 207.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
