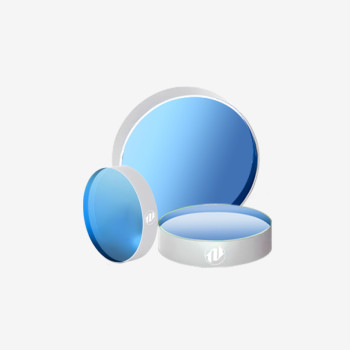

| Coad | 670220 | Type | Ultra-Broadband Plate Beamsplitter | |
| Dimension(mm) | 25.4 x 1.0 | Wavelength(nm) | 300 - 2800 | |
| Diameter | 25.4mm | Thickness | 1.0mm | |
| T/R Ratio | 95:5 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | - | |
| Parallelism | - | Surface Quality S1 | - | |
| Surface Quality S2 | - | Surface Flatness | - | |
| GDD | - | Laser Damage Threshold | - | |
| Coating Type | Dielectric Coating | Coating Specifications | S1:R>95.0%@300-2800nm,T>95.0% / S2:Uncoated |
Traders City price 927.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
