| Code | 670218 | Type | LED Point Light Sources | |
| Color | White | Color Temperature | 6500 – 7000K | |
| Illuminance | 1700 – 2300Klux | Voltage | 5V | |
| Power Consumption | 5.5W | Cooling Method | Air cooling | |
| Lifetime | 30,000h | Dimensions | Ø29mm × 64mm | |
| Operating Temperature | 0 – 40℃ | Storage Environment | -20 – 60 ℃, 20 – 85% RH |
High brightness, small emitting area
Low power consumption, long lifetime
Available color temperatures: 5700–6500 K and 6500–7000 K
Use with constant current controller

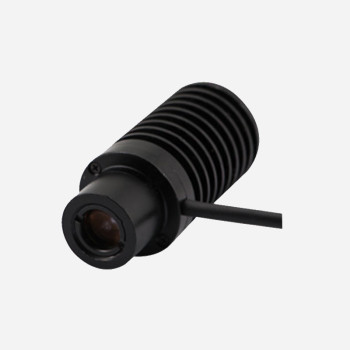

LBTEK provides LED point light sources together with constant current controllers. These light sources feature high brightness, compact emitting areas, low power consumption, and long service lifetimes, all in a compact and lightweight design. Two color temperature options are available: 5700–6500 K and 6500–7000 K.
The LB-L21-64-WDG model adopts a special focusing design, delivering higher illuminance than standard point light sources with uniformity ≥ 95%.
LED point light sources are commonly used for coaxial illumination in lenses, inspection of flat surface defects, and other precision lighting tasks. For proper operation, they must be used together with the LBTEK constant current controller LB-CL0503B-4T.
