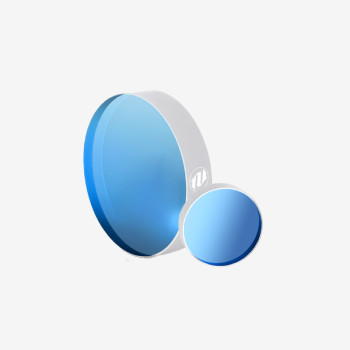

| Coad | 670213 | Type | 1150nm Plate Beamsplitter | |
| Dimension(mm) | 25.4 x 3.0 | Wavelength(nm) | 1150 | |
| Diameter | 25.4mm +0/-0.1 mm | Thickness | 3.0mm +0/-0.1 mm | |
| T/R Ratio | 97:3 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | ≥20mm | |
| Parallelism | <30 arcsec | Surface Quality S1 | 20-10 S-D over CA (as per MIL-PRF-13830B) | |
| Surface Quality S2 | 20-10 S-D over CA (as per MIL-PRF-13830B) | Surface Flatness | λ/8@633nm over 10mm CA | |
| GDD | - | Laser Damage Threshold | - | |

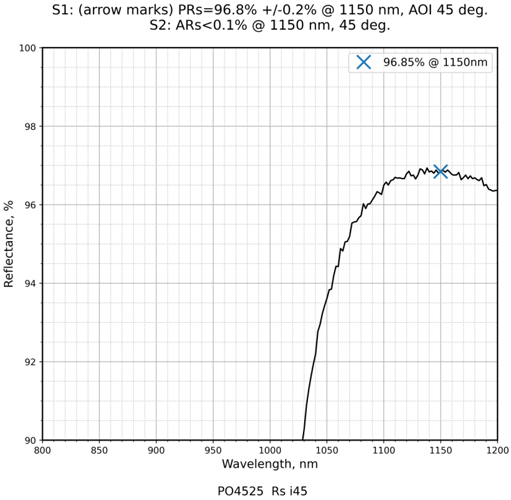

| Coating Type | IBS | Coating Specifications | S1:PRs=96.8%+ / -0.2%@1150nm / S2:ARs<0.1%@1150nm |
Traders City price 404.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
