| Code | 670211 | Type | Engineered Diffusers | |
| Optical Component Material | Polymer / N-BK7 Window | Diameter | 25.4mm | |
| Diameter Tolerance | +0.0 / -0.1mm | Clear Aperture | ＞90%CA | |
| Thickness | 1.2mm | Thickness Tolerance | ±0.25mm | |
| Operating Wavelength Range | 400nm – 2000nm | Transmission | ＞90% | |
| Damage Threshold | 50W/cm | Microlens Cell Size | Ø90μm × 30μm | |
| Divergence Angle | 20° |
Traders City price 138.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Divergence Angles: 5°, 10°, and 20° options
Function: Modify beam intensity distribution
Transmission Efficiency: > 90%

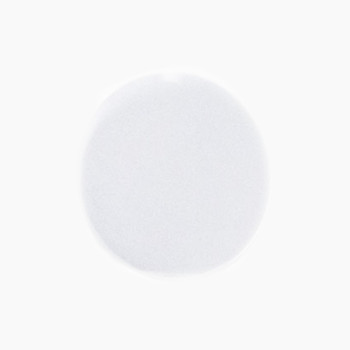

LBTEK offers engineered diffusers with selectable divergence angles of 5°, 10°, and 20°. Designed for a broad operating wavelength range of 400 nm – 2000 nm, these diffusers can reshape the intensity profile of incident beams, delivering non-Gaussian distributions. With transmission efficiency greater than 90% and a high damage threshold, they are suitable for demanding optical applications.
LBTEK also provides custom-engineered diffuser sizes. Please contact LBTEK technical support for tailored solutions.
