| Coad | 670156 | Substrate | N-BK7 | |
| Type | Ground Glass Alignment Plate | Clear Aperture | >90% CA | |
| Diameter(mm) | 55.00 | Diameter Tolerance | +0.00/-0.25mm | |
| Thickness(mm) | 3.50 | Thickness Tolerance | ±0.2mm | |
| Plate Grit | 600 | Parallelism | - | |
| Frosted Surface | Single-Sided | Wavelength | - | |
| Central Aperture Size | 12mm +0.1/-0.0mm | Surface Quality | - | |
| Aperture | - | Coating Type | Uncoated | |
| Coating Specifications | - | |||

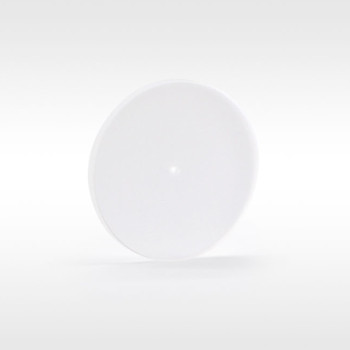

N-BK7 ground glass alignment plates are made from double-sided ground glass diffusers. Thanks to their strong diffuse reflection and scattering properties, they allow users to observe the beam size and spot position from the side, making it easier to monitor the beam condition in the optical path and perform real-time adjustments. Each LBTEK ground glass alignment plate features a central alignment hole to help users more accurately observe the output beam position.
N-BK7 ground glass alignment plates are made from ground glass diffusers. Due to the diffuse reflection properties of ground glass, users can observe the beam size and spot position from the side, making it useful for monitoring the beam condition in the optical path and enabling real-time alignment adjustments. Each LBTEK ground glass alignment plate features a central alignment hole to help users better observe the output beam position. All LBTEK circular optical components can be mounted in LBTEK standard lens sleeves, fixed lens holders, or various coaxial mounting plates, allowing customers to choose the most suitable mounting method for different application scenarios.
