| Code | 670108 | Type | Variable Polarizing Beamsplitter | |
| Optical Material | Quartz + UV Fused Silica | Clear Aperture | 10.0mm | |
| Operating Wavelength | 633nm | Coatings | AR Coating, Beamsplitter Coating | |
| Extinction Ratio (Tp:Ts) | >2000:1 | Retardation Accuracy | ±λ/300 | |
| Surface Quality (Scratch/Dig) | 20/10 | Output Angle | 0° ± 5 arcmin |
Design Wavelengths: 13 options available from 266 nm to 1550 nm
Extinction Ratio (Tp:Ts): >2000:1
Coatings: V-type AR coatings on all four optical surfaces, Rabs < 0.25% @ design wavelength
Application: Suitable for high-power use

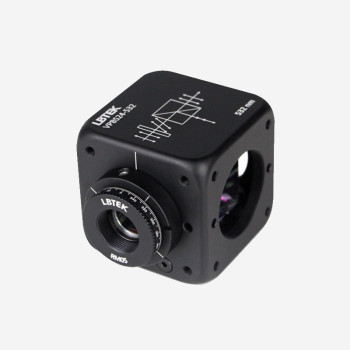

The LBTEK high-power laser line variable polarizing beamsplitter integrates a quartz air-spaced half-wave plate (mounted in an RM05 rotation mount) with a high-power laser line polarizing beamsplitter cube (mounted in a 30 mm cage cube).
A top index mark indicates the beam path. The fast axis of the half-wave plate is preset and aligned with the 0° index mark on the rotation mount and locked in place so that the incident polarization remains unchanged. By loosening the lock with the included spanner wrench, the half-wave plate can be smoothly rotated, enabling continuous adjustment of the transmitted intensity of linearly polarized light.
