| Coad | 669724 | Substrate | UVFS | |

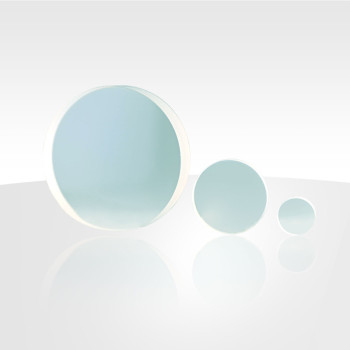

| Type | Nd:YAG Laser Line Reflector Mirror | Diameter(mm) | 12.70 | |
| Clear Aperture | 85% CA | Diameter Tolerance | +0.0/-0.1mm | |
| Parallelism | <3 arcmin | Thickness(mm) | 6.00 | |
| Quantity | 1 | Thickness Tolerance | ±0.2mm | |
| Surface Quality S1 | 10-5 | Wavelength(nm) | 1046 - 1074 | |
| Surface Quality S2 | Frosted Finish | AOI(°) | 0 - 45 | |
| Inclination Angle | - | Surface Flatness | λ/10@633 nm | |
| Laser Damage Threshold | 30 J/cm2@1064 nm，10 ns，20 Hz | Coating Type | LIDT Dielectric Coating | |
| Coating Specifications | Rabs＞99.8%@1064nm，Ravg＞99.5%@1046-1074nm | |||
Traders City price 111.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
