| Coad | 669695 | Substrate | UVFS | |

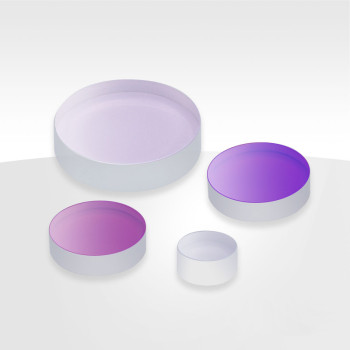

| Type | High-Power Laser Line Reflector Mirror | Diameter(mm) | 25.40 | |
| Clear Aperture | ＞90% CA | Diameter Tolerance | +0.0/-0.25mm | |
| Parallelism | <3 arcmin | Thickness(mm) | 6.00 | |
| Quantity | 1 | Thickness Tolerance | ±0.25mm | |
| Surface Quality S1 | 20-10 | Wavelength(nm) | 532 | |
| Surface Quality S2 | Polishing | AOI(°) | 0 - 45 | |
| Inclination Angle | - | Surface Flatness | λ/6@633 nm | |
| Laser Damage Threshold | 0.1355J/cm2@515 nm，290 fs，20 kHz，Ø12.07μm (Single Pulse)； 0.0568J/cm2@515 nm，290 fs，100 Hz，Ø12.07μm (100 Pulses)； 8J/cm2，532 nm，10 ns, 20 Hz; | Coating Type | LIDT Dielectric Coating | |
| Coating Specifications | Rs,Rp＞99%@532nm | |||
Traders City price 169.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
