| Coad | 669670 | Substrate | UVFS | |

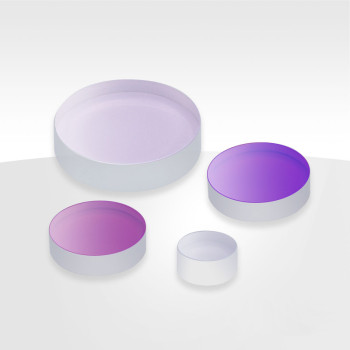

| Type | High-Power Laser Line Reflector Mirror | Diameter(mm) | 50.80 | |
| Clear Aperture | ＞90% CA | Diameter Tolerance | +0.0/-0.1mm | |
| Parallelism | <3 arcmin | Thickness(mm) | 12.00 | |
| Quantity | 1 | Thickness Tolerance | ±0.2mm | |
| Surface Quality S1 | 20-10 | Wavelength(nm) | 1064 | |
| Surface Quality S2 | Frosted Finish | AOI(°) | 0 - 45 | |
| Inclination Angle | - | Surface Flatness | λ/10@633 nm | |
| Laser Damage Threshold | 30 J/cm2@1064 nm，10 ns，20 Hz | Coating Type | LIDT Dielectric Coating | |
| Coating Specifications | Rs，Rp＞99%@1064nm | |||
Traders City price 142.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
