| Coad | 669666 | Substrate | UVFS | |
| Type | High-Power Laser Line Reflector Mirror | Diameter(mm) | 50.80 | |
| Clear Aperture | ＞90% CA | Diameter Tolerance | +0.0/-0.1mm | |
| Parallelism | <3 arcmin | Thickness(mm) | 12.00 | |
| Quantity | 1 | Thickness Tolerance | ±0.2mm | |
| Surface Quality S1 | 20-10 | Wavelength(nm) | 532 | |
| Surface Quality S2 | Frosted Finish | AOI(°) | 0 - 45 | |
| Inclination Angle | - | Surface Flatness | λ/10@633 nm | |
| Laser Damage Threshold | 8 J/cm2@532 nm，10 ns，20 Hz | Coating Type | LIDT Dielectric Coating | |
| Coating Specifications | Rs，Rp＞99%@532nm | |||

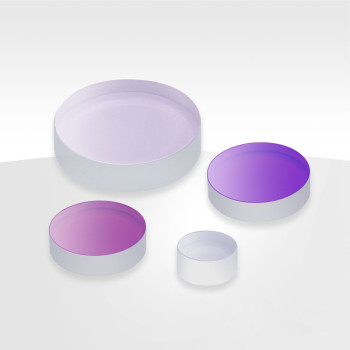

LBTEK high-power laser line reflectors are made with high-purity UV fused silica and ultra-high laser-induced damage threshold (LIDT) dielectric coatings, allowing them to withstand high-energy pulses and offering a higher damage threshold. These reflectors are optimized for efficient reflection in single-wavelength ranges. The UV fused silica substrate of LBTEK high-power laser line reflectors offers better uniformity and a lower thermal expansion coefficient, allowing for better performance during temperature fluctuations and improved resistance to environmental factors. LBTEK high-power laser line reflectors are available for working wavelengths of 266 nm, 355 nm, 532 nm, 780 nm, 1064 nm, 1550 nm, and dual wavelengths of 532 & 1064 nm. The incident angle ranges from 0° to 45°, and the reflectance is over 99%.
LBTEK high-power laser line reflectors are coated with a high laser-induced damage threshold (LIDT) dielectric film, allowing them to withstand high-energy pulses and offering a high damage threshold. These high-power laser line reflectors are designed to accommodate beam incidence angles from 0° to 45°, with a reflectance of over 99%. LBTEK offers two options for the back surface: polished and frosted, providing flexibility for users to apply them in different scenarios.
