| Coad | 669651 | Substrate | Borofloat 33 | |

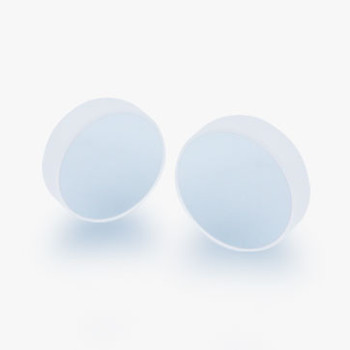

| Type | Metallic Coated Flat Mirror | Diameter(mm) | 12.70 | |
| Clear Aperture | 90% CA | Diameter Tolerance | +0.0/-0.15mm | |
| Parallelism | - | Thickness(mm) | 3.10 | |
| Quantity | 1 | Thickness Tolerance | ±0.25mm | |
| Surface Quality S1 | 40-20 | Wavelength(nm) | 250 - 600 | |
| Surface Quality S2 | Fine Polishing | AOI(°) | 45 | |
| Inclination Angle | - | Surface Flatness | λ/10@633nm | |
| Laser Damage Threshold | 1.3J/cm2@355nm，17.1ns，100Hz，Ø4.41μm (100 Pulses) 0.11J/cm2@355nm，180.5fs，100Hz，Ø6.558μm (100 Pulses) | Coating Type | UV-Enhanced Aluminum Coating (with Silicon Dioxide Protection Layer) | |
| Coating Specifications | Ravg>90%@250-600nm,AOI=45° | |||
UV-enhanced aluminum-coated mirrors are highly suitable for beam deflection (in circular or elliptical shapes) and beam separation (in D-shape) across the ultraviolet spectral range, offering high reflectance across a broad wavelength range. Light is reflected from the metallic coating without introducing chromatic aberration. However, metallic coatings are prone to oxidation, discoloration, or peeling in high-humidity environments. To prevent this, LBTEK’s UV-enhanced aluminum-coated mirrors are coated with a layer of silicon dioxide protection film, isolating the metal coating from direct contact with air and preventing oxidation that could affect optical performance. LBTEK offers UV-enhanced aluminum-coated mirrors in various sizes, including circular, elliptical, and D-shaped options.
LBTEK offers UV-enhanced aluminum-coated flat mirrors, which are highly suitable for beam deflection in the ultraviolet spectral range, providing high reflectance across a broad wavelength range. Light is reflected from the metal coating without introducing chromatic aberration. However, metallic coatings are prone to oxidation, discoloration, or peeling in high-humidity environments. To prevent this, LBTEK’s metallic-coated mirrors are coated with a layer of silicon dioxide protection film, isolating the metal coating from direct contact with air and preventing oxidation, which could affect optical performance.
