| Coad | 669649 | Substrate | UVFS | |
| Type | Metallic Coated Flat Mirror | Diameter(mm) | 26.0 x 35.0 | |
| Clear Aperture | 90% CA | Diameter Tolerance | ±0.1mm | |
| Parallelism | <1 arcmin | Thickness(mm) | 2.00 | |
| Quantity | 1 | Thickness Tolerance | ±0.1mm | |
| Surface Quality S1 | 60-40 | Wavelength(nm) | 800 - 20000 | |
| Surface Quality S2 | Polishing | AOI(°) | 45 | |
| Inclination Angle | - | Surface Flatness | λ/2@633nm | |
| Laser Damage Threshold | - | Coating Type | Gold Coating (with Silicon Dioxide Protection Layer) | |
| Coating Specifications | Ravg>96%@800-20000nm,AOI=45° | |||
Metal-coated mirrors are highly suitable for beam deflection in broadband light sources, offering high reflectance across a wide spectral range. LBTEK provides gold-coated flat mirrors with both protective and non-protective layers, available in circular and rectangular shapes.
Gold-coated mirrors with a protective layer are coated with a layer of silicon dioxide to isolate the metal coating from direct contact with external elements, preventing scratches that could affect optical performance. Non-protective gold-coated mirrors offer higher reflectance compared to the protective-coated ones but are more fragile and prone to surface scratches.

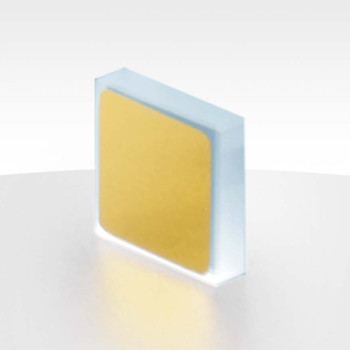

LBTEK offers rectangular gold-coated mirrors, which are highly suitable for beam deflection in broadband light sources, providing high reflectance across a wide spectral range. Due to the inherent fragility of the gold coating, it is prone to scratching. Therefore, a layer of silicon dioxide protection film is applied to the surface to isolate the metal coating from direct contact with external elements, preventing scratches that could affect optical performance.
