| Coad | 669648 | Substrate | Borofloat 33 | |

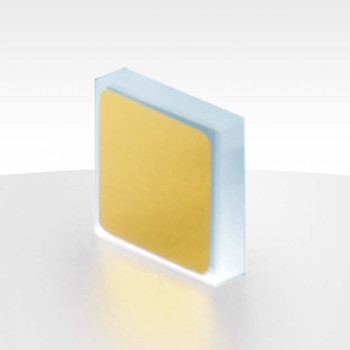

| Type | Metallic Coated Flat Mirror | Diameter(mm) | 25.4 x 25.4 | |
| Clear Aperture | 90% CA | Diameter Tolerance | +0.0/-0.1mm | |
| Parallelism | - | Thickness(mm) | 6.00 | |
| Quantity | 1 | Thickness Tolerance | ±0.25mm | |
| Surface Quality S1 | 60-40 | Wavelength(nm) | 800 - 20000 | |
| Surface Quality S2 | Fine Polishing | AOI(°) | 45 | |
| Inclination Angle | - | Surface Flatness | λ/10@633nm | |
| Laser Damage Threshold | 0.50J/cm2@1550nm，190fs，100Hz，Ø11.47μm (100 Pulses) | Coating Type | Gold Coating (with Silicon Dioxide Protection Layer) | |
| Coating Specifications | Ravg>96%@800-20000nm,AOI=45° | |||
Traders City price 60.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
