| Coad | 669617 | Substrate | UVFS | |

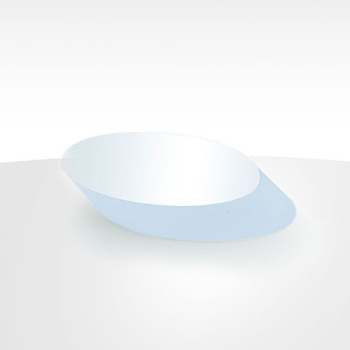

| Type | Broadband Dielectric Coated Mirrors | Diameter(mm) | 18.00 / 12.70(Elliptical) | |
| Clear Aperture | 90% CA | Diameter Tolerance | +0.0/-0.1mm | |
| Parallelism | <3 arcmin | Thickness(mm) | 6.00 | |
| Quantity | 1 | Thickness Tolerance | ±0.20mm | |
| Surface Quality S1 | 10-5 | Wavelength(nm) | 400 - 750 | |
| Surface Quality S2 | - | AOI(°) | 0 - 45 | |
| Inclination Angle | 45° | Surface Flatness | λ/10@633nm | |
| Laser Damage Threshold | 0.055J/cm2@515nm，290fs，100Hz，Ø10.72μm (100 Pulses) | Coating Type | Dielectric Coating | |
| Coating Specifications | Rvg>99%@400-750nm,AOI=0-45° | |||
Traders City price 90.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
