| Coad | 669616 | Substrate | UVFS | |
| Type | Broadband Dielectric Coated Mirrors | Diameter(mm) | 35.90 / 25.40(Elliptical) | |
| Clear Aperture | 90% CA | Diameter Tolerance | +0.0/-0.1mm | |
| Parallelism | <3 arcmin | Thickness(mm) | 6.00 | |
| Quantity | 1 | Thickness Tolerance | ±0.25mm | |
| Surface Quality S1 | 10-5 | Wavelength(nm) | 1100 - 1650 | |
| Surface Quality S2 | - | AOI(°) | 45 | |
| Inclination Angle | 45° | Surface Flatness | λ/10@633nm | |
| Laser Damage Threshold | 0.50J/cm2@1550nm，190fs，100Hz，Ø11.47μm (100 Pulses) | Coating Type | Dielectric Coating | |
| Coating Specifications | Ravg>99%@1100-1650nm,AOI=45° | |||
Traders City price 160.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller

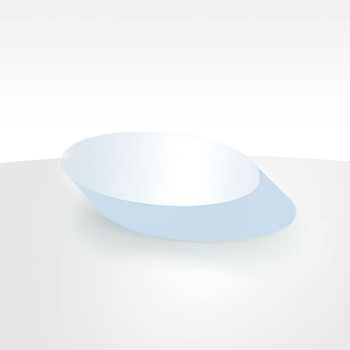

Mirrors are used to change the direction of the light beam. LBTEK’s fused silica broadband dielectric mirrors have a reflectance greater than 99% within the working wavelength range. To meet various customer size requirements, LBTEK offers UV fused silica dielectric mirrors in a variety of shapes, including circular, elliptical, square, and D-shaped.
Mirrors are used to change the direction of the light beam. LBTEK’s UV fused silica broadband dielectric mirrors have a reflectance greater than 99% within the working wavelength range. To meet a variety of customer size requirements, LBTEK offers UVFS dielectric mirrors in multiple shapes, including circular, elliptical, square, and D-shaped options.
