| Code | 669595 | Type | Wollaston Crystal Polarizing Prism | |
| Clear Aperture | Ø45mm | Working Wavelength | 400nm - 700nm | |
| Anti-reflection Coating | Ravg < 0.5 % @400-700nm | Extinction Ratio (Tp:Ts) | >500：1@400-450nm >5000：1@450-700nm | |
| Surface Quality (Scratch/Dig) | 60/40 | Operating Temperature | 0-60 °C | |
| Mechanical Housing | CRM-2A | Housing Dimensions | 76.0mm×76.0mm×20.4mm | |
| Substrate Material | N-BK7 | Laser Damage Threshold | 0.466J/cm² @515nm, 290 fs, 100kHz, Ø10.72μm (Single Pulse) | |
| Angle of Incidence (AOI) | ±20° | Transmission Axis Alignment Accuracy | ±1° |
Working Wavelength: 400-700 nm
Mechanical Housing Models: CRM-05AS, CRM-1AS, CRM-2A
This thin film linear polarizer is ideal for low-power applications, offering high extinction ratios and a large angle of incidence. The transmission axis is aligned with the 0° marking on the rotating mirror frame, making it easy to use.

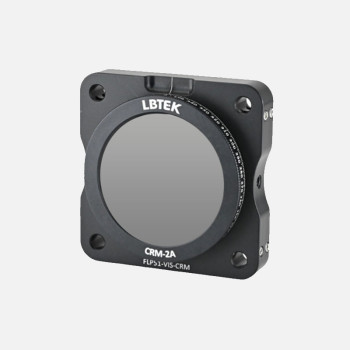

For the working wavelength of 400-700 nm, the air contact surfaces of the substrates on both sides of the thin film linear polarizer are coated with anti-reflection coatings for the corresponding wavelength bands. The polarizers, installed with retaining rings, are mounted in rotating mirror frames CRM-05AS, CRM-1AS, and CRM-2A, with clear apertures of Ø10 mm, Ø21.5 mm, and Ø45 mm, respectively.
The thin film linear polarizer is suitable for low-power applications and provides a high extinction ratio and a large angle of incidence range of ±20°. The transmission axis of all three models is aligned with the 0° marking and is fixed with adhesive for ease of use.
