| Code | 669586 | Type | Rochon Crystal Polarizing Prism | |
| Optical Component Material | Laser-Grade α-BBO | Clear Aperture | Ø10mm | |
| Working Wavelength | 190nm - 3.5μm | Surface Quality (Scratch/Dig) | 20/10 (Input/Output Faces) | |
| Transmitted Wavefront Error (@633nm) | <λ/4, Ø8.5mm | Surface Flatness (@633 nm) | λ/8 (Input/Output Faces), Ø8.5mm | |
| Extinction Ratio | 100000:1 | Structure Design | Optical Adhesive Bonding | |
| Beam Deviation | <10 arcsec | Protective Coating | P coating @1064nm | |
| Housing Thread | SM1 External Thread | Housing Diameter | Ø25.4mm +0.0/-0.2mm | |
| Separation Angle | 8° REF @1064nm | Housing Thickness | 16.0mm ±0.1mm |
Traders City price 812.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Optical Component Material: Laser-Grade α-BBO
Clear Aperture: Ø10 mm
Working Wavelength: 200 nm - 3.5 μm

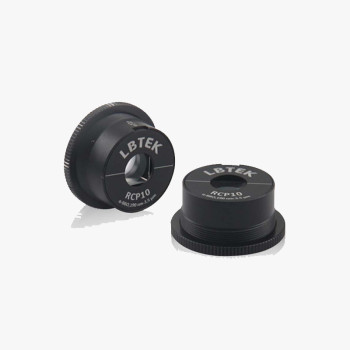

The LBTEK Rochon Prism is a polarization device made by bonding two negative uniaxial crystals (calcite or α-BBO) with mutually perpendicular optical axes, using adhesive or optical bonding technology. When natural light is incident, the prism produces two beams of linearly polarized light with orthogonal polarization directions and a certain separation angle at the prism's transmission end.
