| Code | 669585 | Type | Wollaston Crystal Polarizing Prism | |
| Optical Component Material | Laser-Grade α-BBO | Clear Aperture | Ø10mm | |
| Working Wavelength | 200nm – 1.1μm | Surface Quality (Scratch/Dig) | 20/10 (Input/Output Faces) | |
| Transmitted Wavefront Error (@633 nm) | <λ/4, Ø8.5mm | Surface Flatness (@633 nm) | λ/8 (Input/Output Faces), Ø8.5mm | |
| Extinction Ratio | 100000:1 | Structure Design | Optical Adhesive Bonding | |
| Beam Deviation | <10 arcsec | Protective Coating | P coating @266nm | |
| Housing Thread | SM1 External Thread | Housing Diameter | Ø25.4mm +0.0/-0.2mm | |
| Separation Angle | 15° REF @1064nm | Housing Thickness | 16mm ±0.1mm |
Optical Component Material: Calcite / α-BBO
Clear Aperture: Ø10 mm
Working Wavelength: 200 nm - 2.3 μm (segmented)

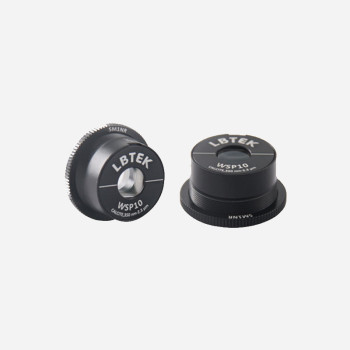

The LBTEK Wollaston Crystal Polarizing Prism is designed to output highly extinction-ratio linear polarized light. LBTEK offers Wollaston Crystal Polarizing Prisms with a clear aperture of Ø10 mm and working wavelengths of 200 nm - 1.1 μm (with UV protective coating) and 350 nm - 2.3 μm (uncoated).
Additionally, the LBTEK Glan-Taylor Crystal Polarizing Prism is pre-installed in a black anodized mechanical housing that is non-detachable. The housing features an SM1 external thread with a retaining ring, allowing for reverse locking to control the prism's polarization direction. The other end has an optical arm, which is compatible with LBTEK adjustment frames for easy customer use.
