| Coad | 669440 | Substrate | Liquid Crystal Polymer / N-BK7 | |

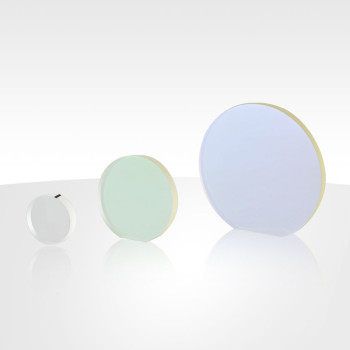

| Type | True Zero-Order Quarter-Wave Plate | Diameter(mm) | 50.80 | |
| Thickness | 3.20 | Wavelength(nm) | 1310 | |
| Mechanical Housing | - | Shell Diameter | - | |
| Outer Shell Thickness | - | Clear Aperture（mm） | 45.00 | |
| Parallelism | ＜1 arcmin | Optical Retardance | λ/4 | |
| Delay Accuracy | ±λ/250 | Delay Uniformity | ±5nm | |
| AOI | ±15° | Surface Quality | 60-40 | |
| Operating Temperature | -20 - 80℃ | Fast Axis Accuracy | - | |
| Transmission Wavefront Deviation | ＜λ/2@633nm | Laser Damage Threshold | - | |
| Coating Type | AR Coating | Coating Specifications | T＞98%,Ravg＜1.2%@700-1700nm,AOI=0° |
Traders City price 135.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
