| Coad | 669274 | Substrate | UVFS | |

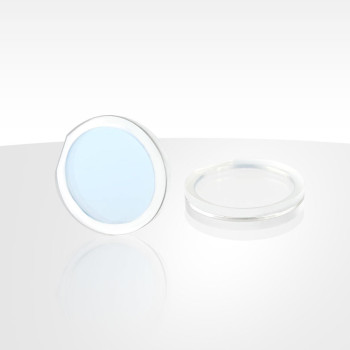

| Type | Zero-Order Quarter-Wave Plate | Diameter(mm) | 12.70 | |
| Thickness | ＜2.8mm | Wavelength(nm) | 509 | |
| Mechanical Housing | - | Shell Diameter | - | |
| Outer Shell Thickness | - | Clear Aperture（mm） | 10.00 | |
| Parallelism | <10 arcsec | Optical Retardance | λ/4 | |
| Delay Accuracy | ±λ/300 | Delay Uniformity | - | |
| AOI | - | Surface Quality | 20-10 | |
| Operating Temperature | - | Fast Axis Accuracy | - | |
| Transmission Wavefront Deviation | λ/8@633nm | Laser Damage Threshold | - | |
| Coating Type | V-Type Anti-Reflection Coating | Coating Specifications | R<0.25%@509nm,AOI=6° |
Traders City price 388.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
