| Code | 669161 | Type | 30mm Coaxial Flat Optical Element Mount | |
| Material | 6061-T6 aluminum alloy | Surface Treatment | Black anodization | |
| Maximum Optical Element Thickness | 3mm | Compatible Optical Element Size | 42mm × 30mm | |
| Optical Element Fixing Method | Spring Clamping | Installation Angle | 45° | |
| Minimum Clamping Edge Length | 25mm | Bottom Thread Hole Specification | M4 |
Compatible Optical Element Size
42 mm × 30 mm
Maximum Optical Element Thickness
3 mm
Installation Angle
45°, with installation step aligned at 45°
Bottom Thread Hole Specification
M4 for optical post installation

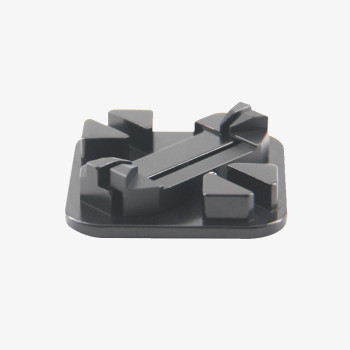

The CM-3B4C is designed for directly mounting LBTEK standard size 36 mm × 25 mm rectangular dichroic mirrors, with a maximum installation size of 42 mm × 30 mm and a maximum thickness of 3 mm. The optical element is secured and released using spring compression, with a single screw tightening and releasing the spring.
The base features an M4 threaded hole for connecting Ø12.7 mm stainless steel optical posts. It is compatible with the 30 mm coaxial cube lid, making it ideal for mounting in 30 mm coaxial systems, while also providing protection for optical elements.
