| Code | 669159 | Type | 30mm Coaxial Flat Optical Element Mount | |
| Material | 6061-T6 aluminum alloy | Surface Treatment | Black anodization | |
| Compatible Optical Element Diameter | 25.4mm | Optical Element Fixing Method | M3 Set Screw | |
| Installation Angle | 45° | Compatible Optical Element Thickness Range | 3mm to 8mm | |
| Bottom Thread Hole Specification | M4 |
Traders City price 44.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Material: T6061 Aluminum Alloy, Black Anodizing
Compatible Optical Element Diameter: 25.4 mm, Thickness Range: 3 mm to 8 mm
Installation Angle: 45°, with a 45° aligned step
Bottom Thread Hole Specification: M4, for optical post installation

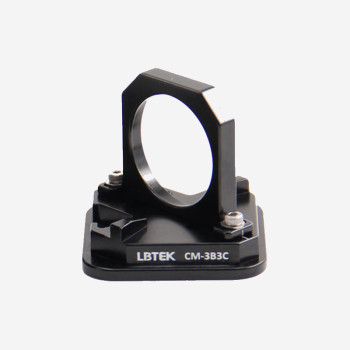

The CM-3B3C, with M3 set screw and adhesive head, is used to secure optical elements with a diameter of Ø25.4 mm and thickness between 3 mm and 8 mm. The mounting base has an M4 threaded hole, allowing it to connect with Ø12.7 mm stainless steel optical posts. It is compatible with the 30 mm coaxial cube CM-3, used for mounting in 30 mm coaxial systems, while also protecting optical elements.
